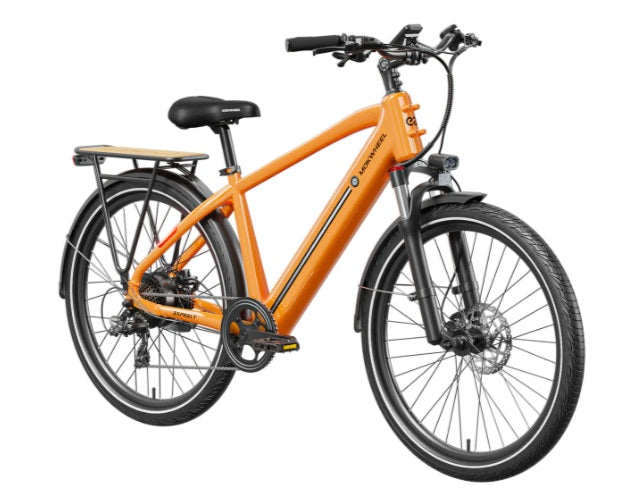

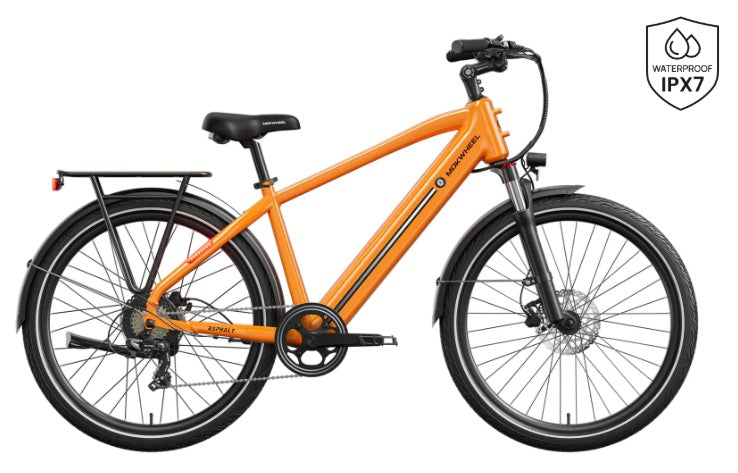

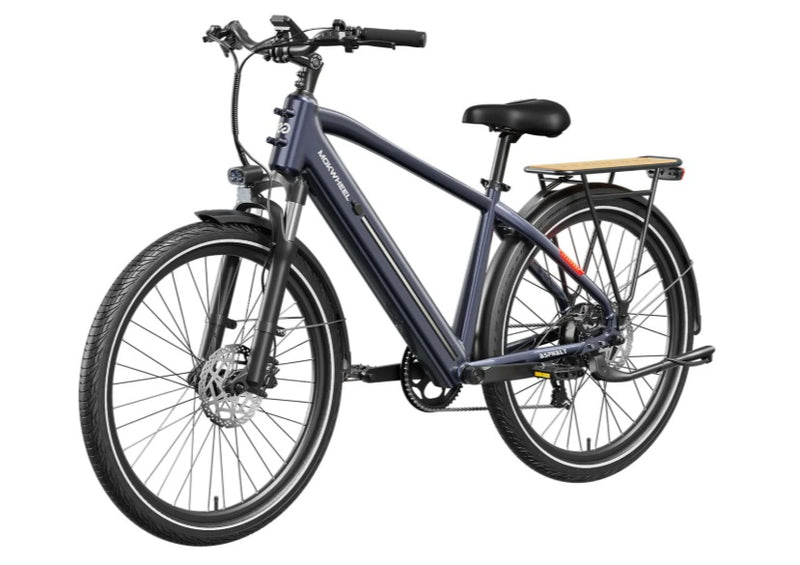

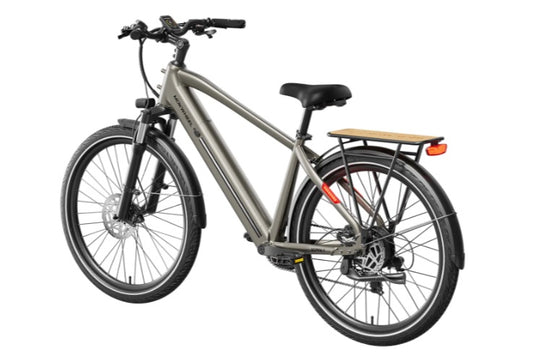

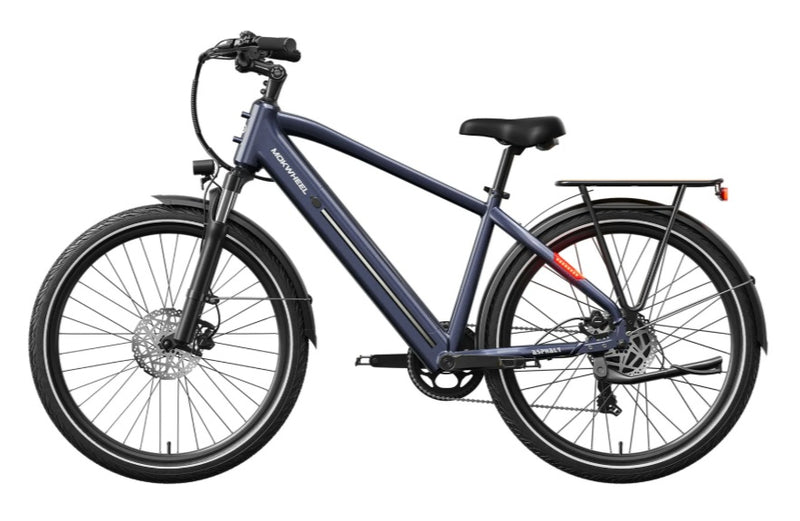

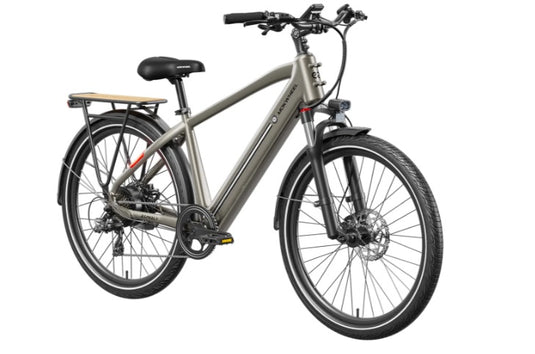

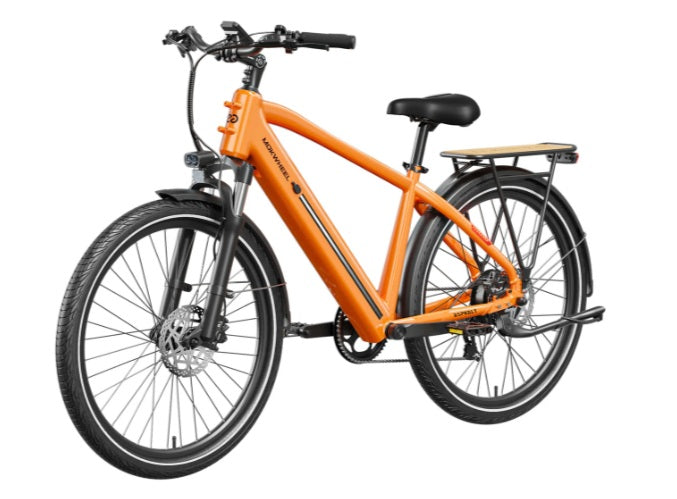

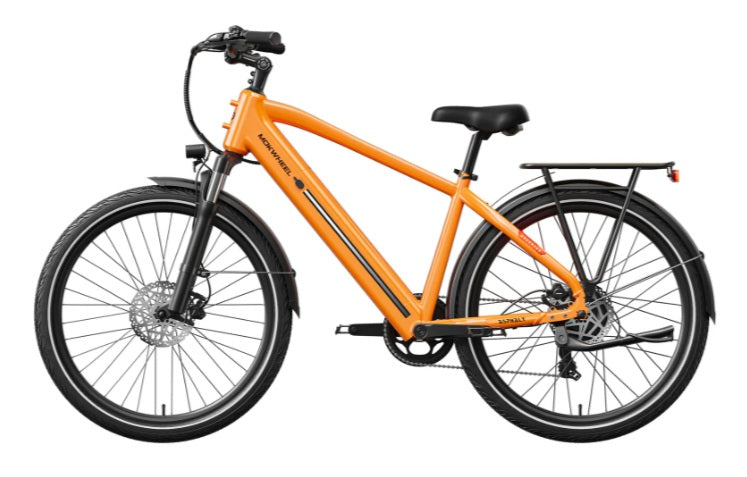

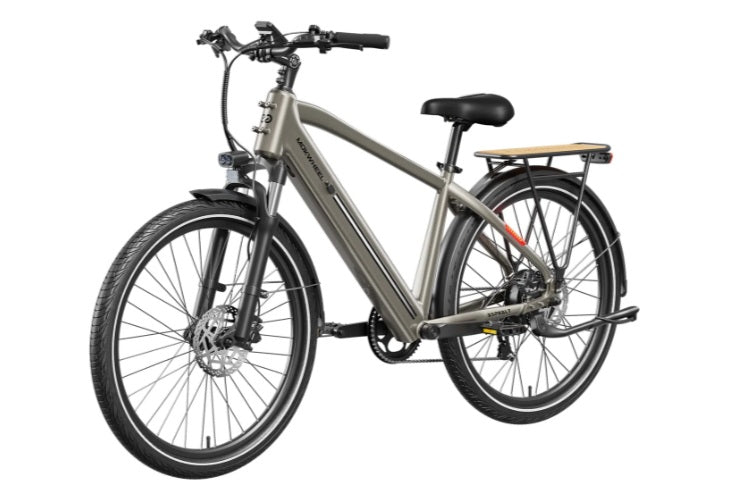

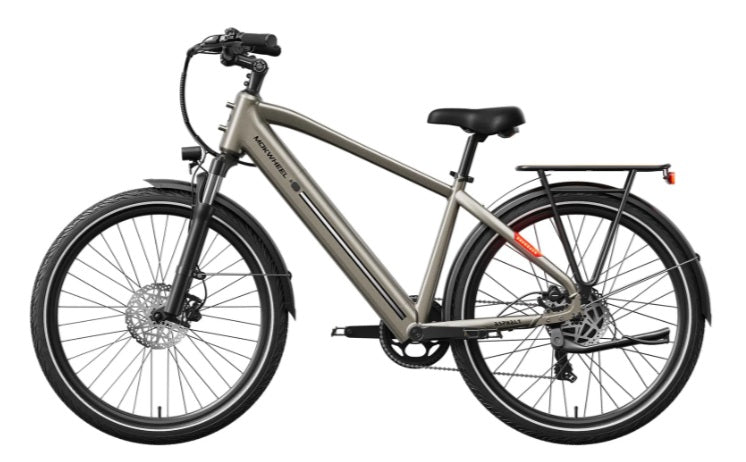

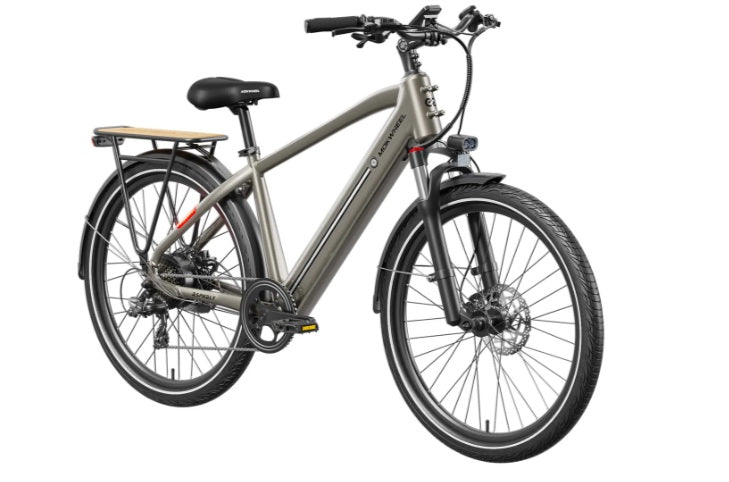

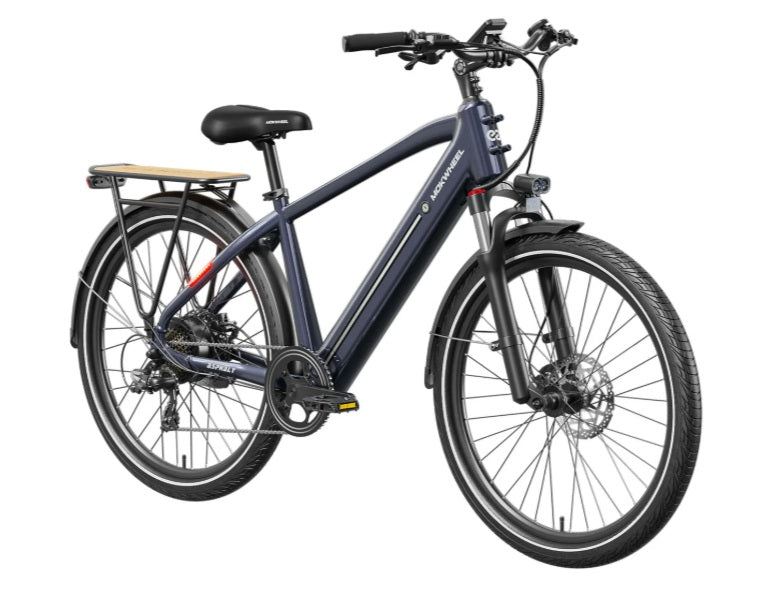

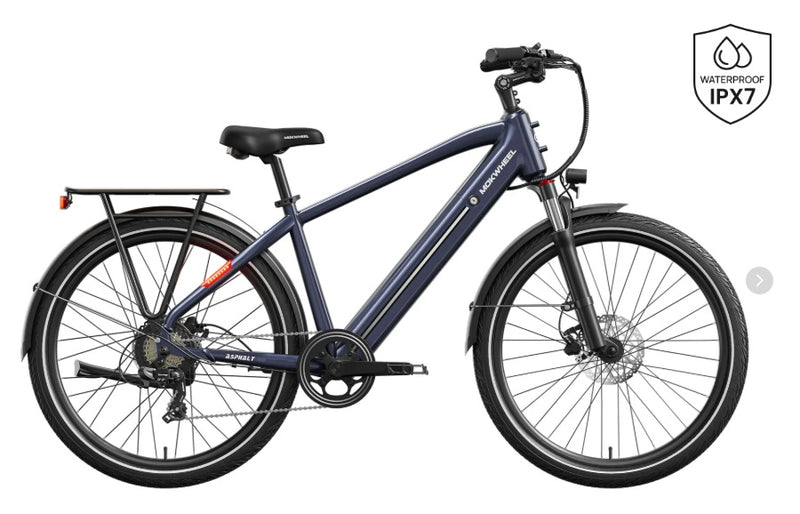

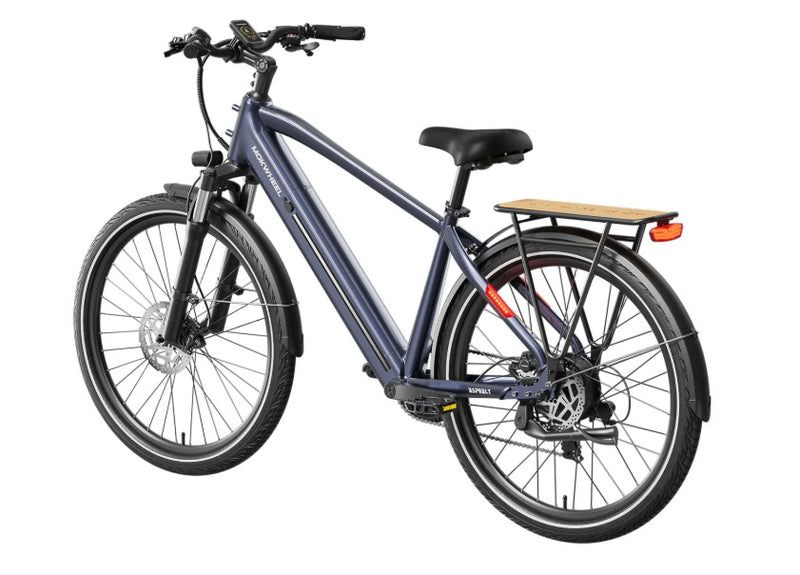

Mokwheel Asphalt Step Over Hybrid E-Bike

The Mokwheel Asphalt Step Over Hybrid E-Bike is Mokwheel’s performance-focused urban eBike built for riders who want more power, higher load capacity, and a roomier riding position. The 860W peak motor, 48V battery, and up to 60 miles of range of the Mokwheel Asphalt Step Over Hybrid E-Bike deliver strong, efficient performance for daily commuting. An ergonomic frame design, hydraulic brakes, 27.5" tires, and a torque sensor offer stable, responsive handling, while the rear rack and full lighting system support practical everyday use. Designed for taller riders or those who prefer extra space, Asphalt delivers capability and comfort for modern city riding.

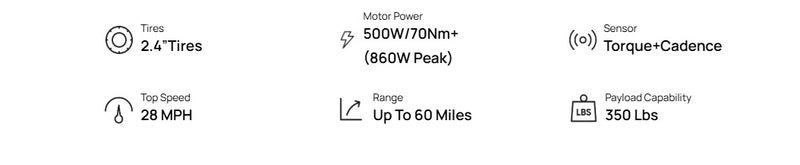

Specifications

• Battery - 48V 14.7A Complies with UL standards, IPX7 Waterproof

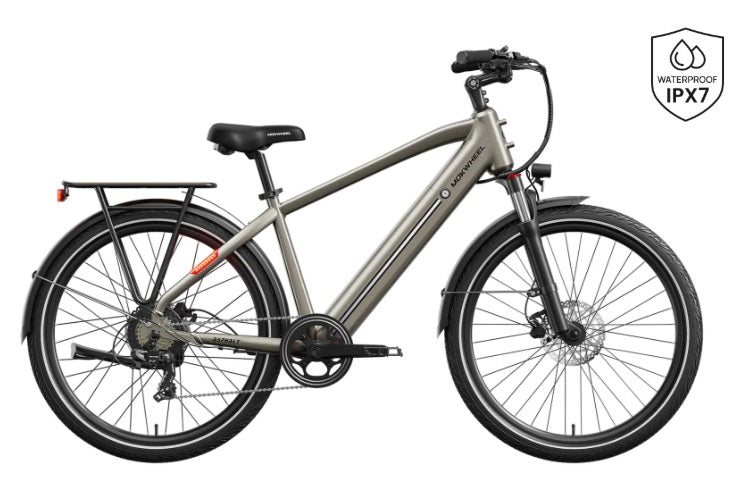

• Waterproof Rating - IPX6 (Whole Bike)
• Speed Class - 20 mph (Throttle) / 28 mph (PAS - Pedal Assist)
• Range - 50 to 60 miles
• Charger - 48V 3A

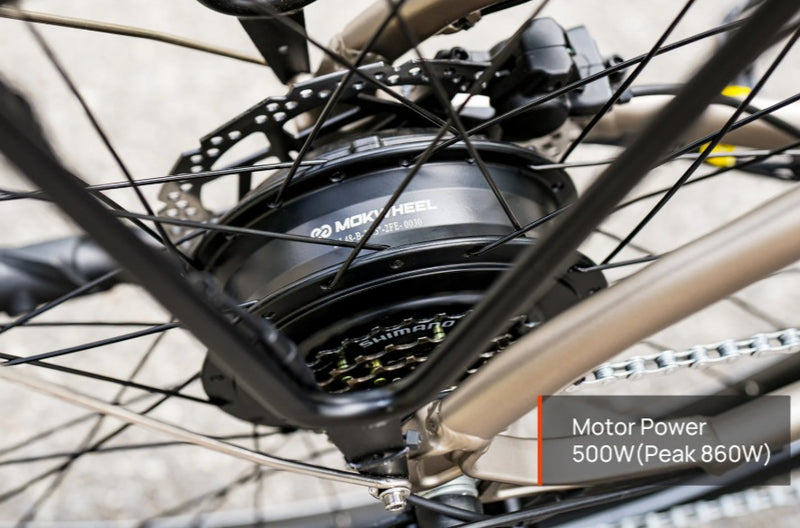

• Motor
  • Continuous Power - 500W
  • Peak Power - 860W
  • Torque - 70Nm+
• Weight - 64 lbs
• Payload Capacity - 350 lbs

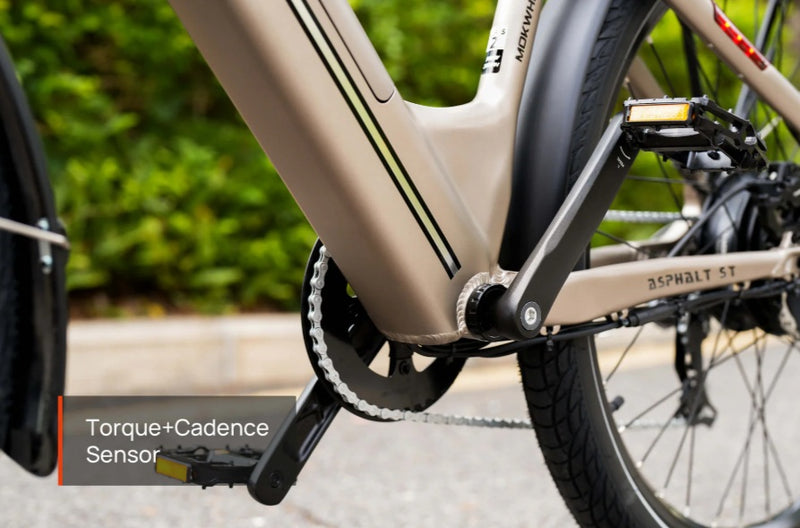

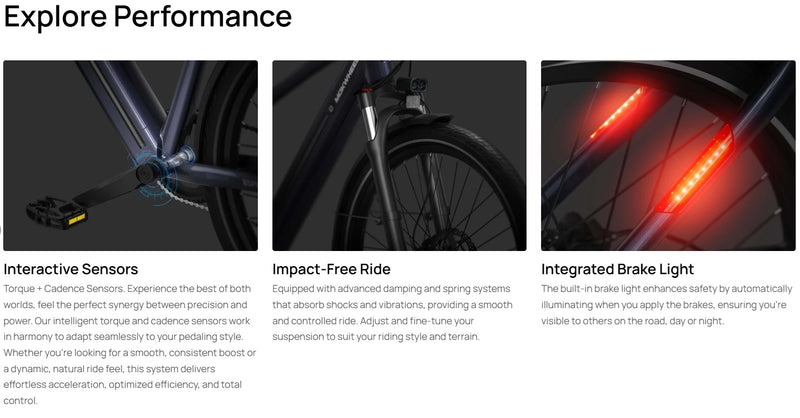

• Sensor - Torque+Cadence Sensor
• Tires - 27.5" x 2.4" tires
• Display - LED Integrated
• Gearing - Shimano 7-Speed
• Derailleur - 7-speed Shimano
• Brakes - TEKTRO HD-E350 Hydraulic Disc Brakes
• Brake lever - Aluminum Alloy
• Chain - KMC Stainless Chain
• Crank Set - Aluminum alloy, 170mm, 44T chainring
• Front Fork - 100mm Adjustable Suspension
• Frame - 6061 Aluminum Alloy
• Throttle - Thumb Throttle
• Handlebar - Aluminum Alloy 31.8mm, 680mm
• Kickstand - Sturdy Aluminum Alloy
• Rims - Aluminum Alloy
• Saddle - Customized Comfort Leather Seat

How to Assemble Your New Mokwheel Asphalt E-Bike

Specifications

• Battery - 48V 15Ah Complies with UL standards, IPX7 Waterproof
• Waterproof Rating - IPX6 (Whole Bike)
• Charger - 48V 3A
• Motor
  • Continuous Power - 500W
  • Peak Power - 860W
  • Torque - 70Nm+
• Basket's Max Load - Front 55 lbs and Rear 220 lbs
• Payload Capacity - 350 lbs
• Range - 45 to 55 miles
• Weight - 101 lbs
• Speed - 15 mph (Throttle) / 20 mph (PAS)
• Sensor - Cadence sensor
• Frame - 6061 Aluminum Alloy with Internal Battery
• Brakes - HB-892E Hydraulic Brake
• Tires - 20"×3.0" Road Tire
• Display - LED Integrated
• Derailleur - 7 Speed Shimano Rear Derailleur
• Chain - KMC Stainless Chain
• Crank Set - Aluminum alloy, 170mm, 46T chainring
• Front Fork - 80mm fork travel
• Gearing - Shimano 7-Speed
• Throttle - Thumb Throttle
• Handlebar Length - 620 mm
• Kickstand - Sturdy Aluminum Alloy
• Rims - Aluminum Alloy
• Saddle - Customized Comfort Leather Seat
• Spokes - Heavy-duty carbon steel ，13G×183mm
