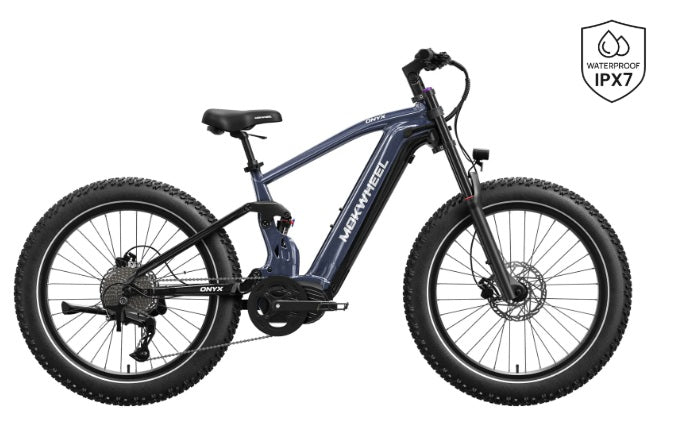

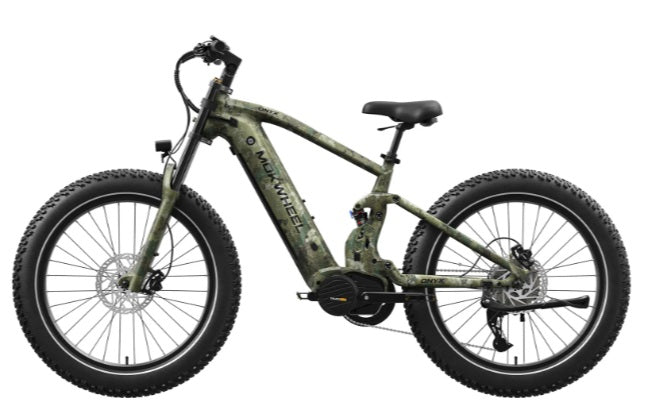

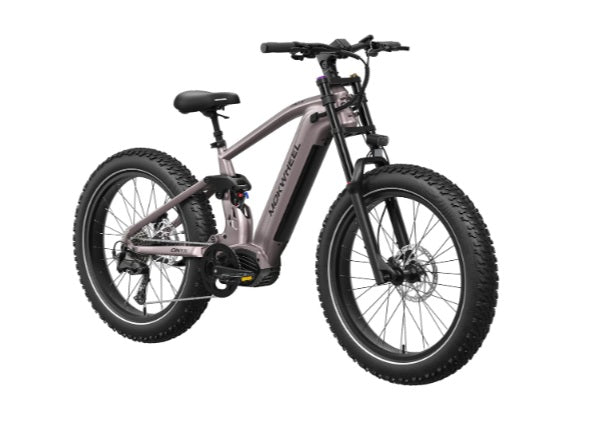

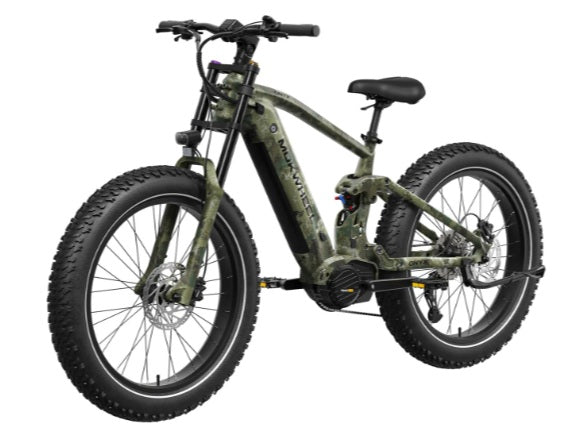

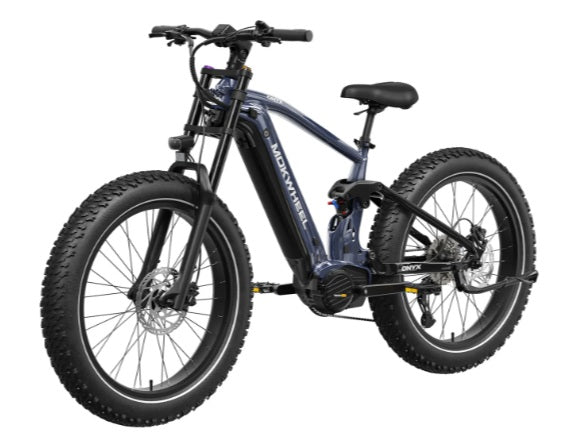

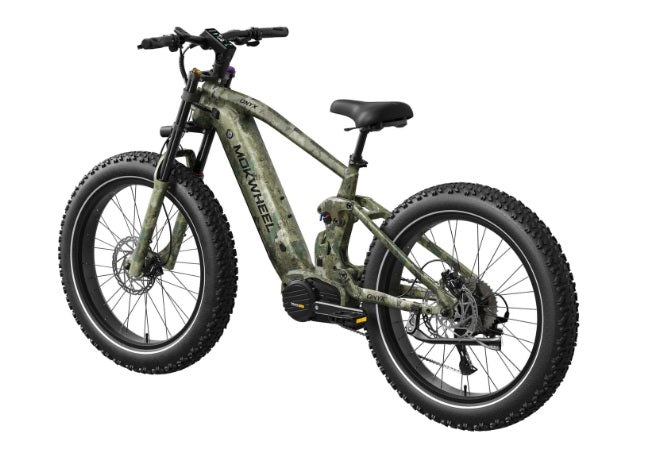

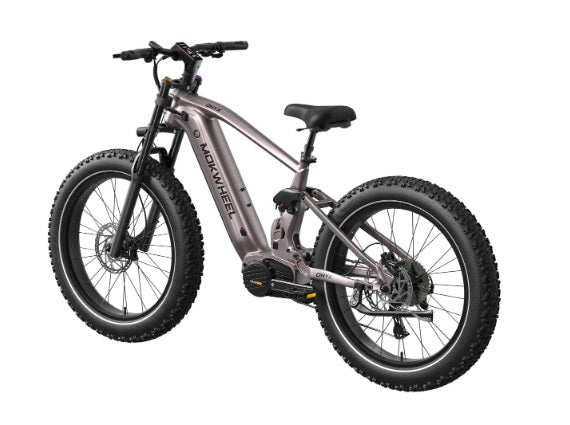

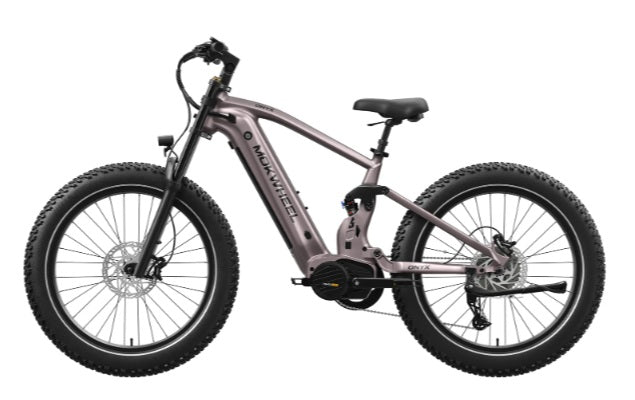

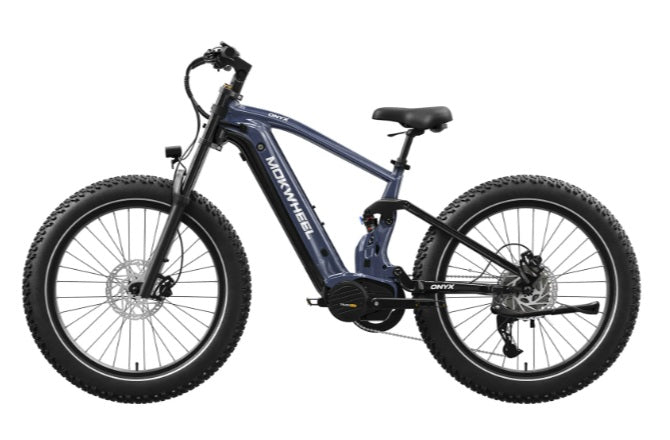

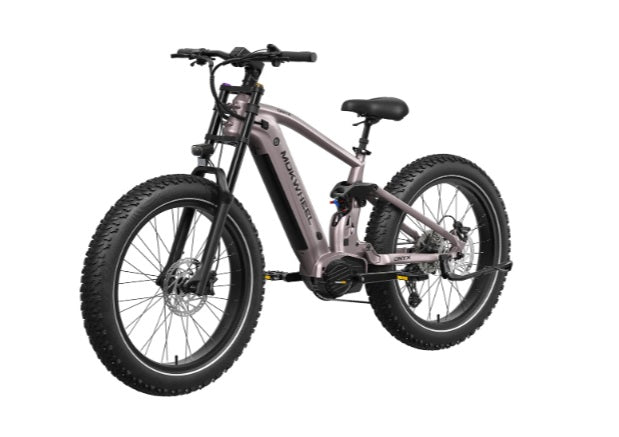

Mokwheel Onyx E-bike

Are you shopping for a mid-drive motor electric bike that will accelerate to 28 mph with pedal assist?  Espresso Bicyel Repairs has your perfect match, the Mokwheel Onyx Step Over Mid-Drive Full Suspension E-bike.

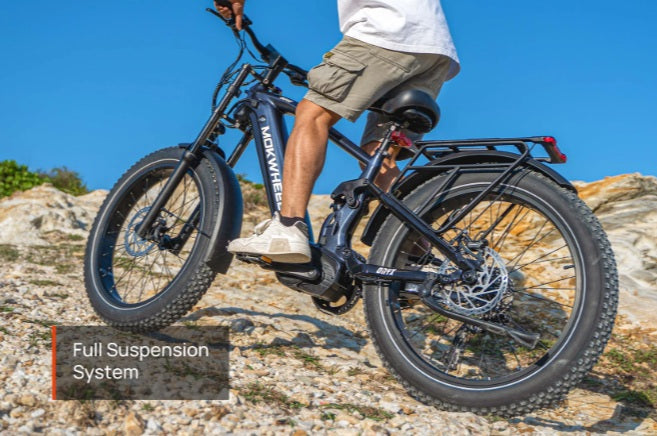

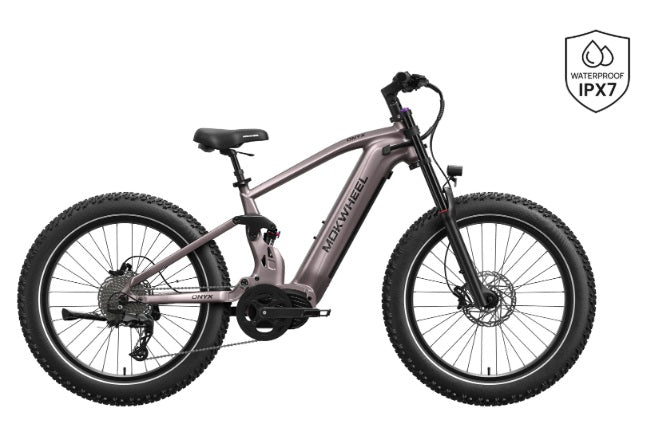

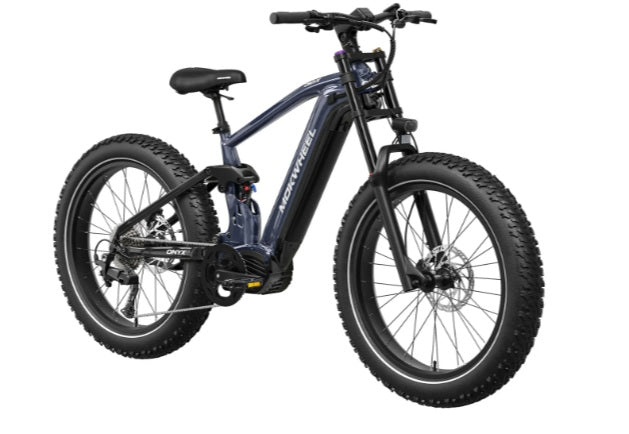

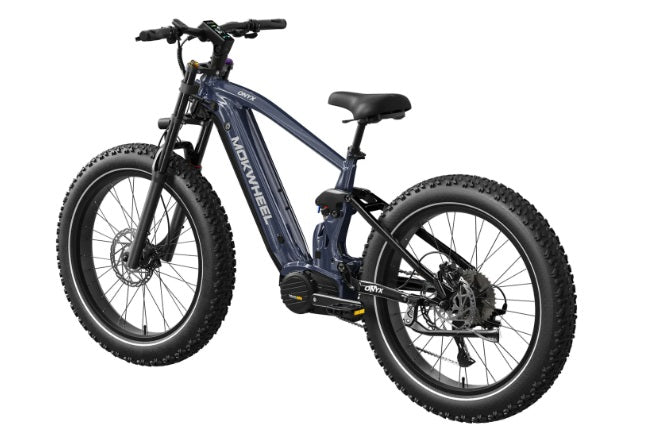

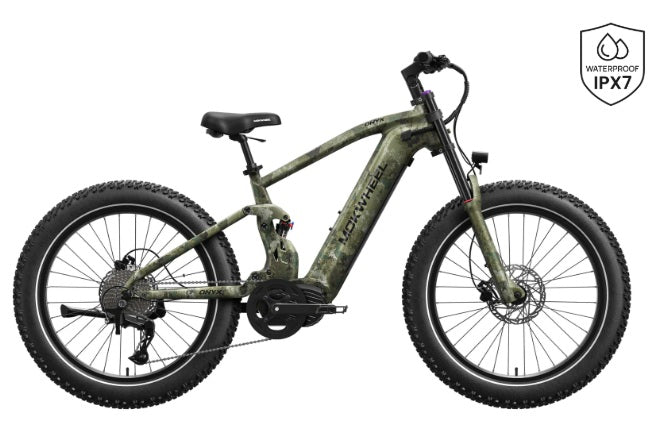

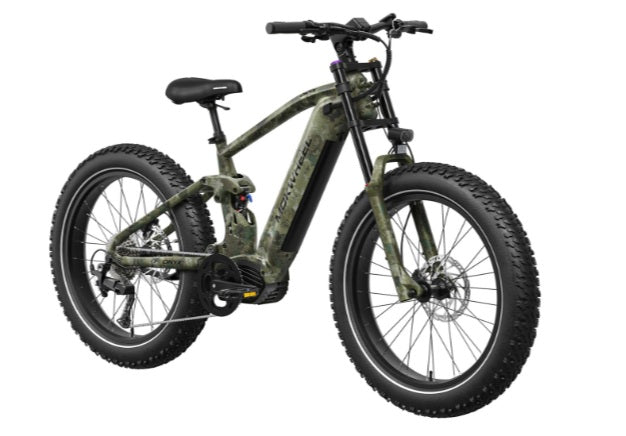

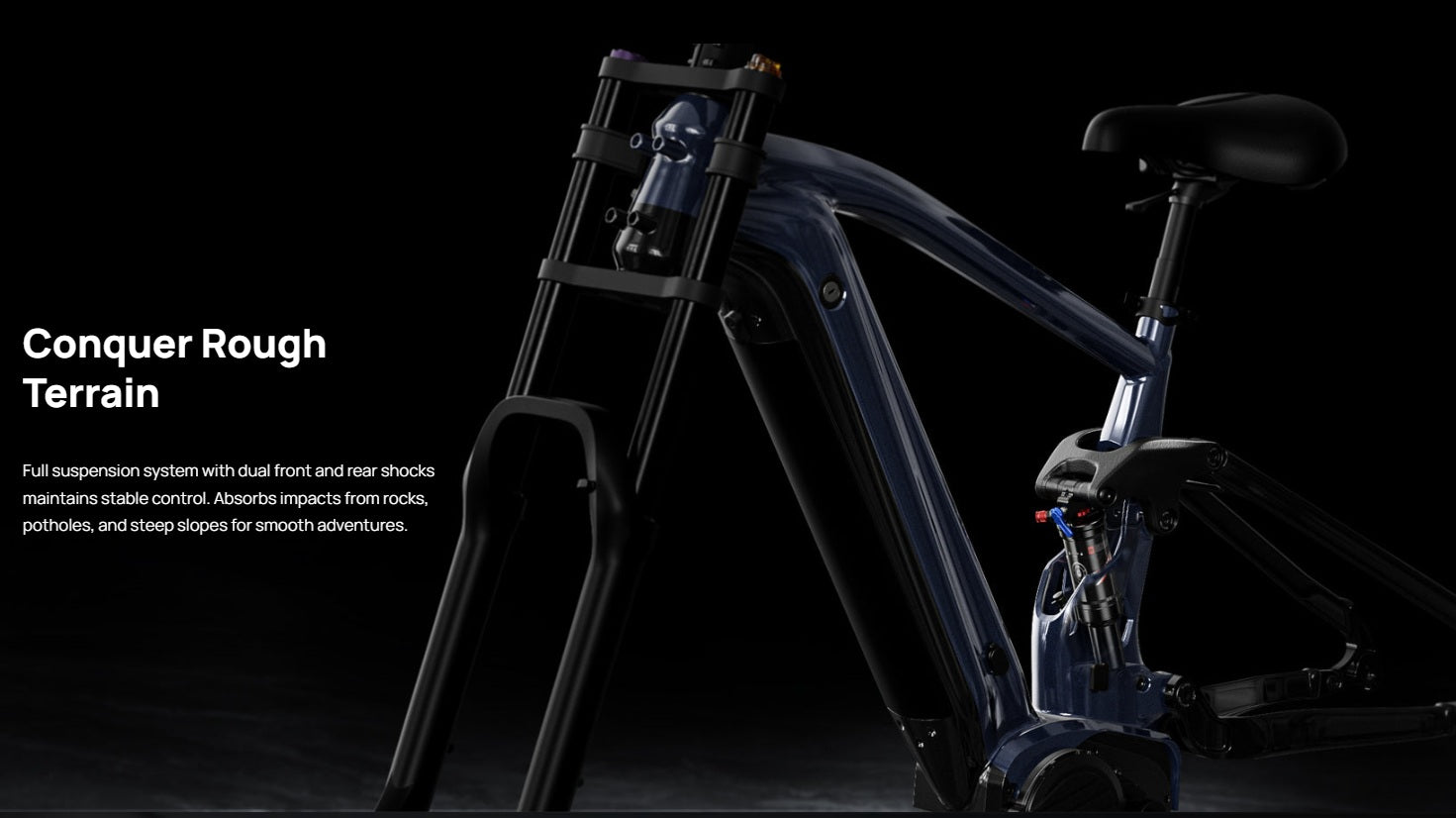

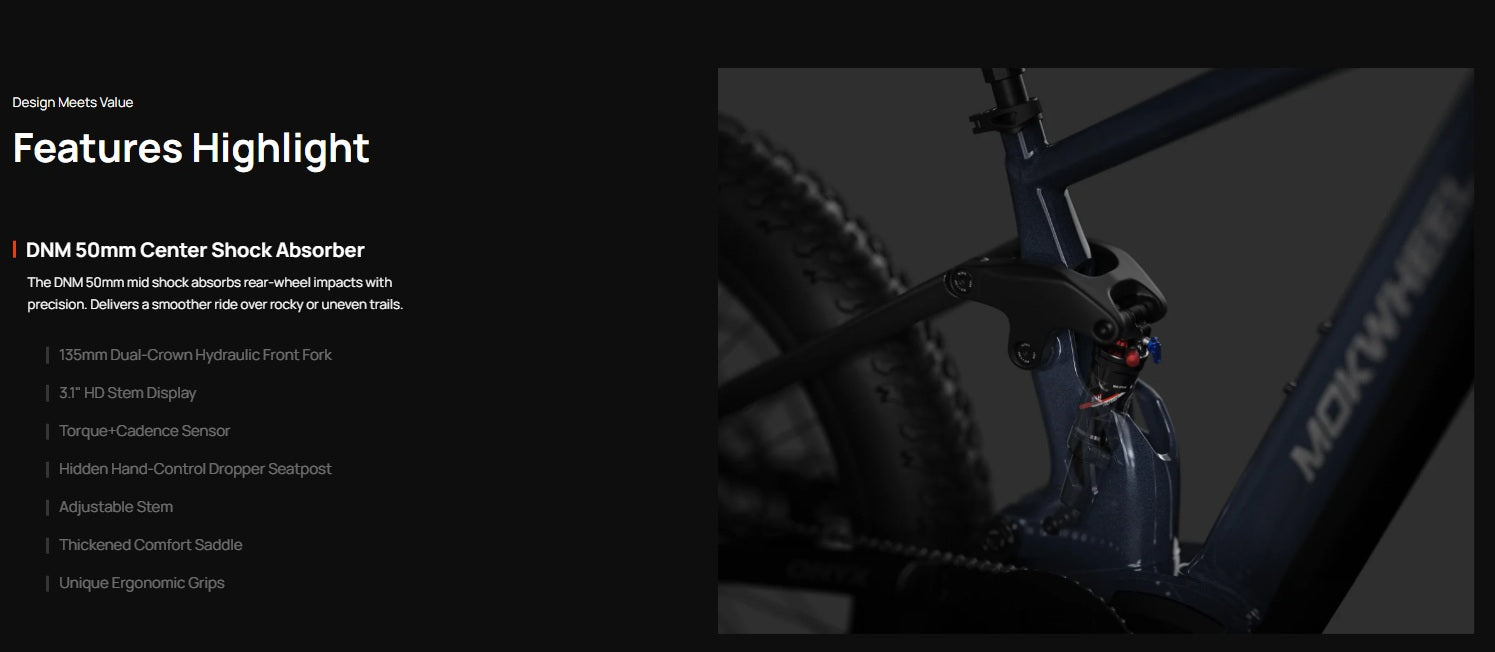

The Mokwheel Onyx Step Over Mid-Drive Full Suspension E-Bike is built for riders who demand strength and versatility. With a 1300 W peak motor and 210 Nm of torque, the Mokwheel Onyx tackles steep climbs and mixed terrain with confidence. A 48 V 19.6 Ah battery provides extended range—up to 80 miles—while the fat 26″ × 4.0″ tires, dual-crown fork, and 50 mm rear air shock deliver smooth comfort on road or trail. Equipped with Shimano 10-speed gearing and hydraulic disc brakes, Onyx blends serious off-road capability with everyday usability. Designed for adventure, commuter or weekend warrior, it sets a new standard for all-terrain eBikes.

How to Assemble Your New Mokwheel Onyx E-Bike

Specifications

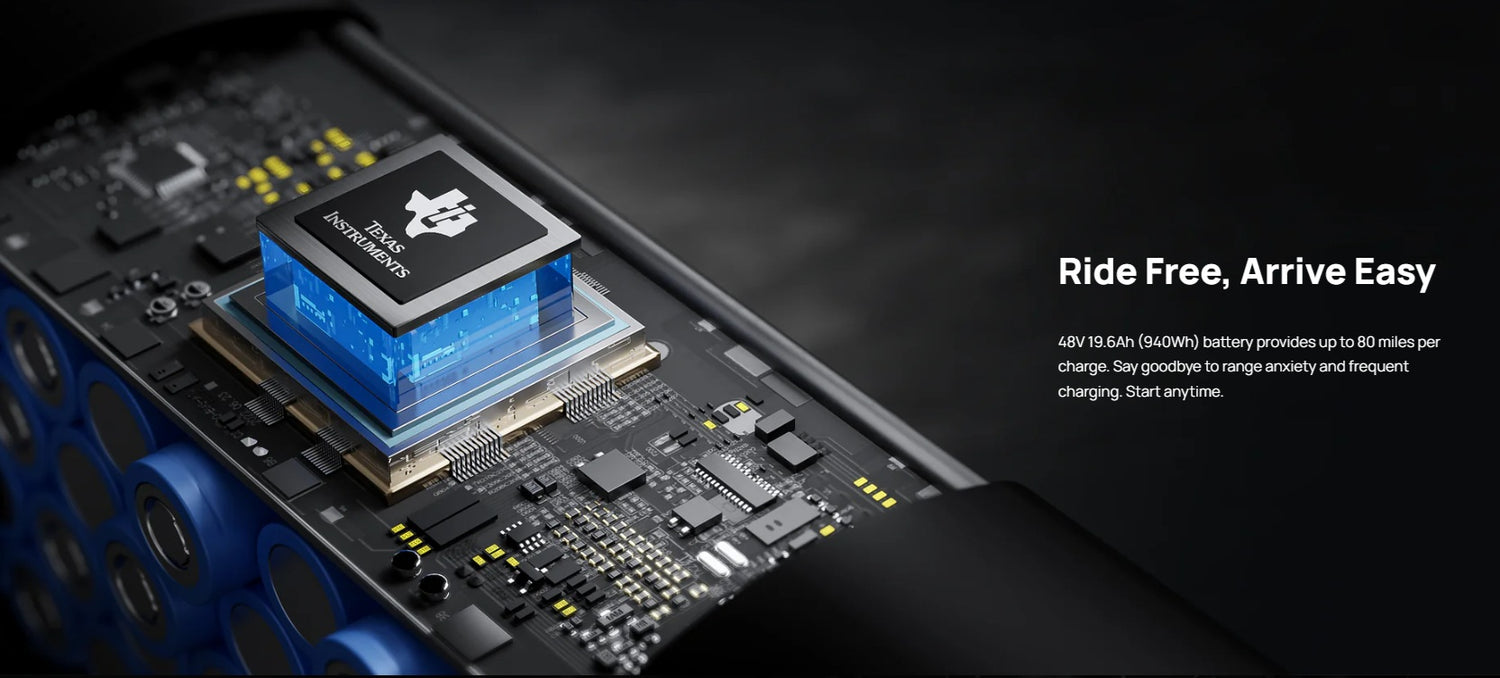

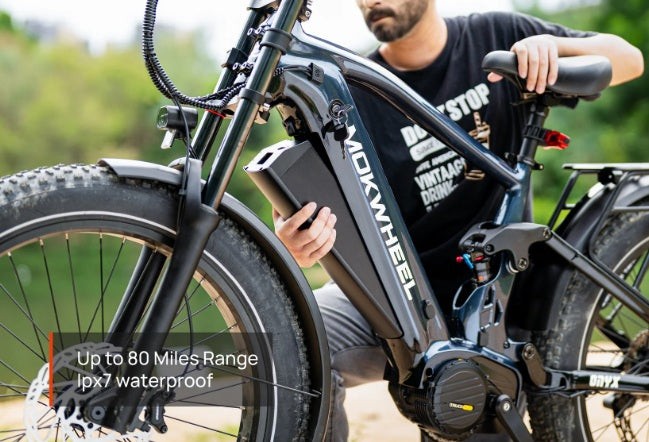

• Battery - 48V 19.6A , Complies with UL standards, IPX7 Waterproof
• Waterproof Rating - IPX6 (Whole Bike)
• Charger - 48V 3A

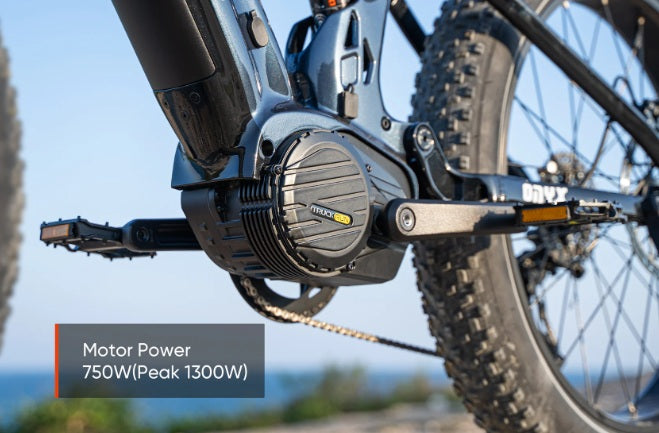

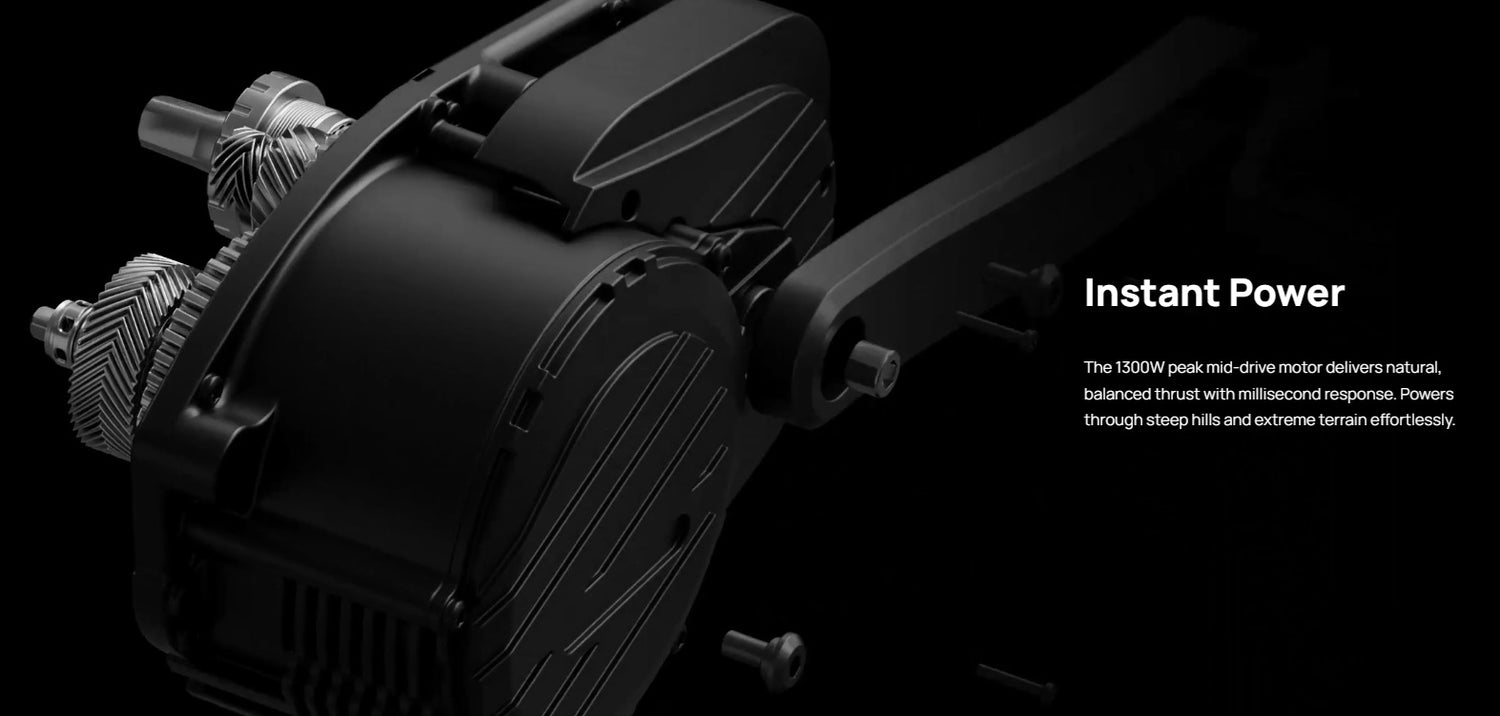

• Motor - Mid-Drive
  • Rated Power - 750W
  • Continuous Power - 1000W
  • Peak Power - 1300W
  • Torque - 210Nm+
• Speed Class - 20 mph (Throttle only) / 28 mph (PAS - Pedal Assist)
• Range - 60 to 80 miles
• Weight - 89 lbs
• Payload Capacity - 560 lbs

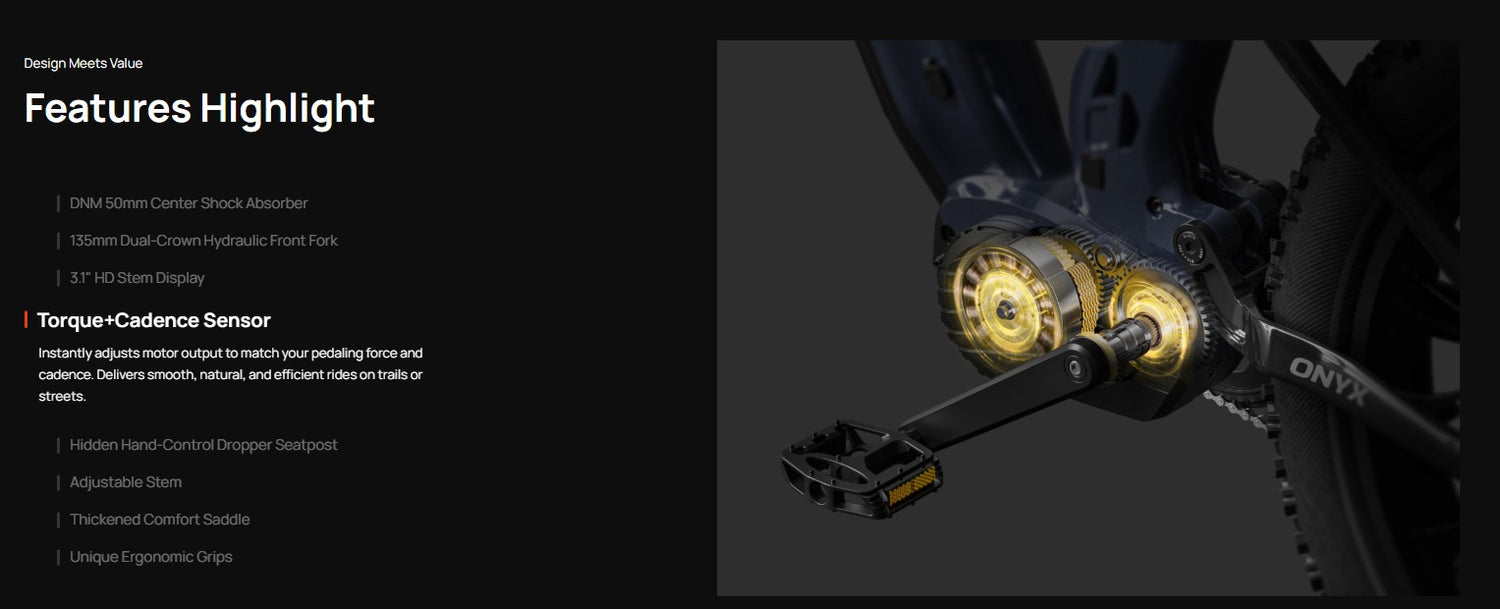

• Sensor - Torque+Cadence Sensor

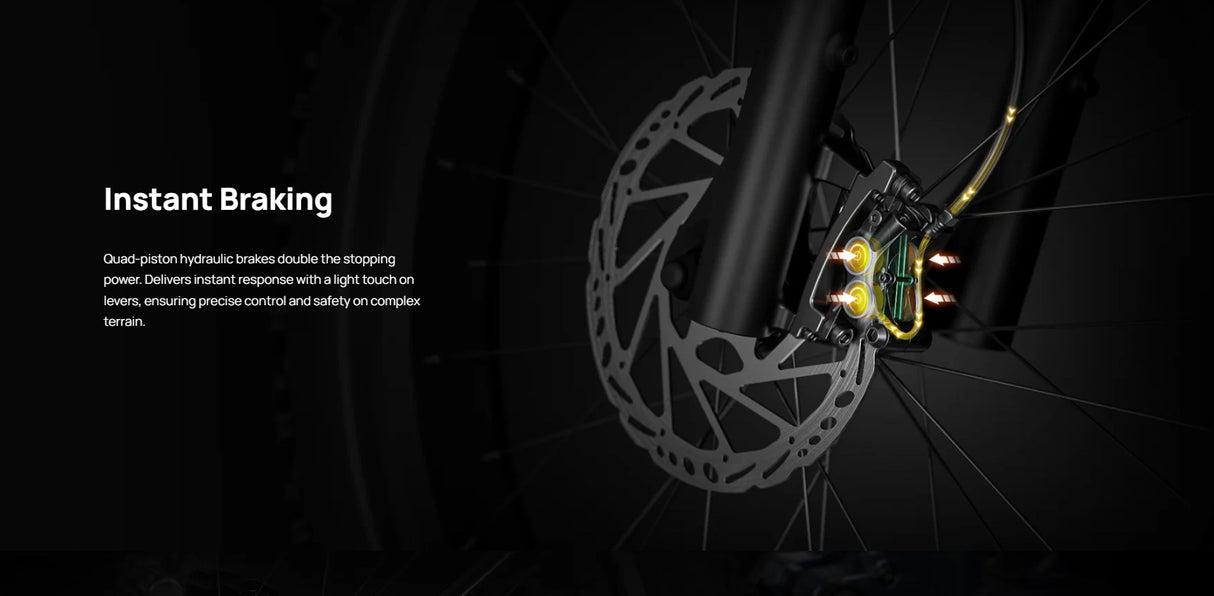

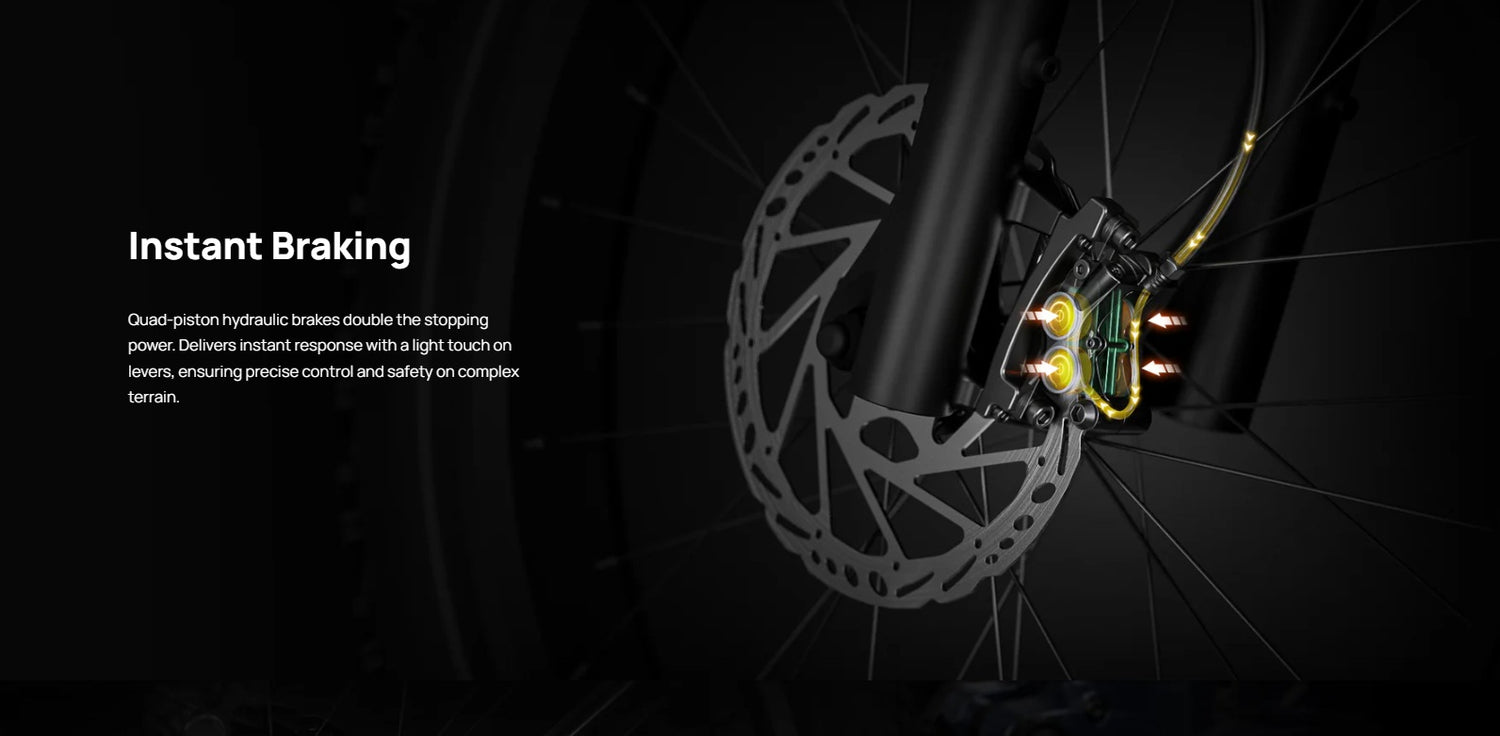

• Brakes - Tektro HD-E3940 4-Piston Hydraulic Brake
• Tires - 26x4.0" Puncture Resistant Fat Tire

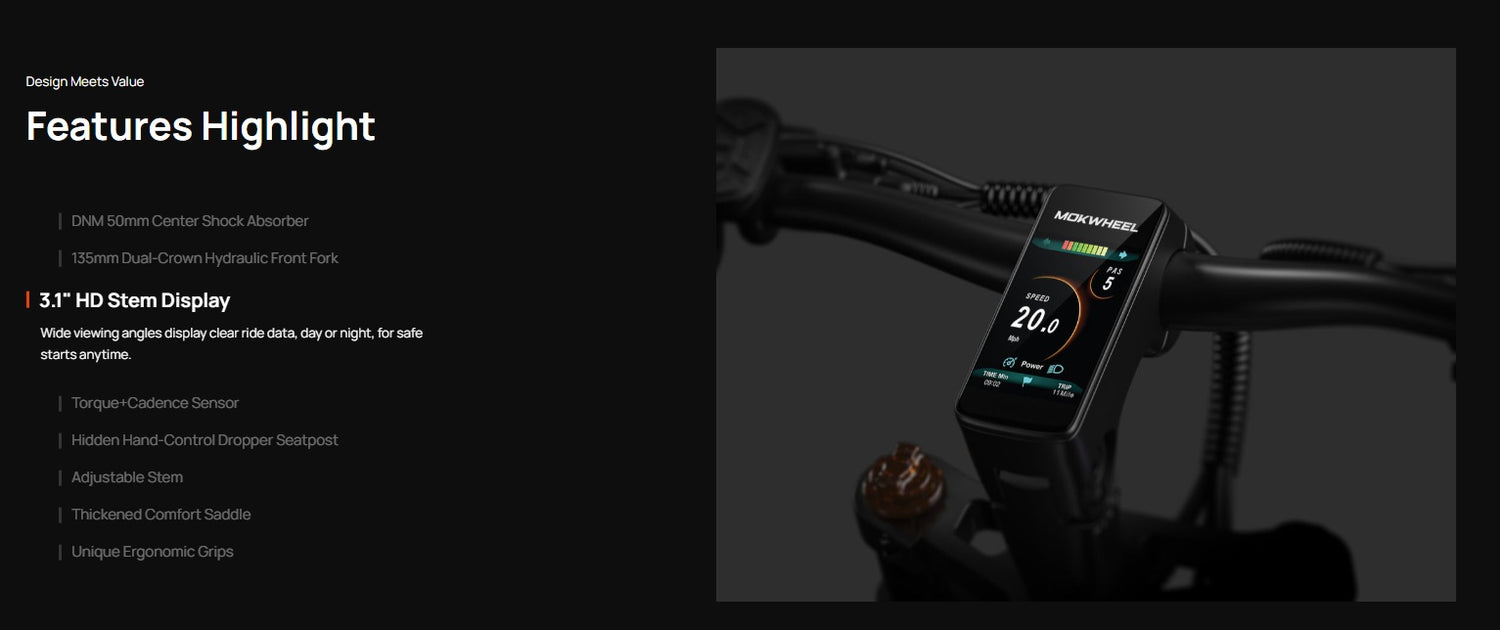

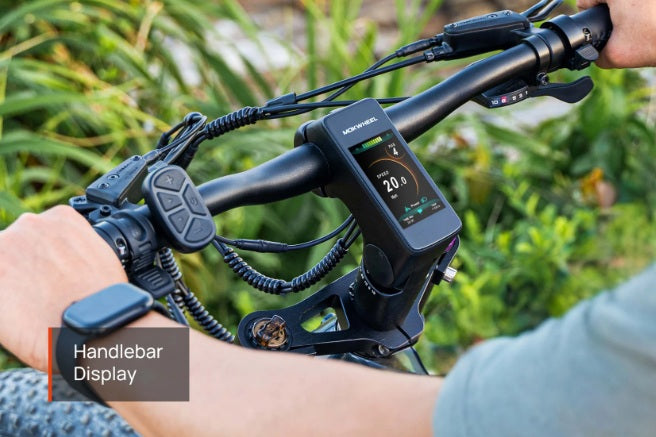

• Display - HD Stem Display

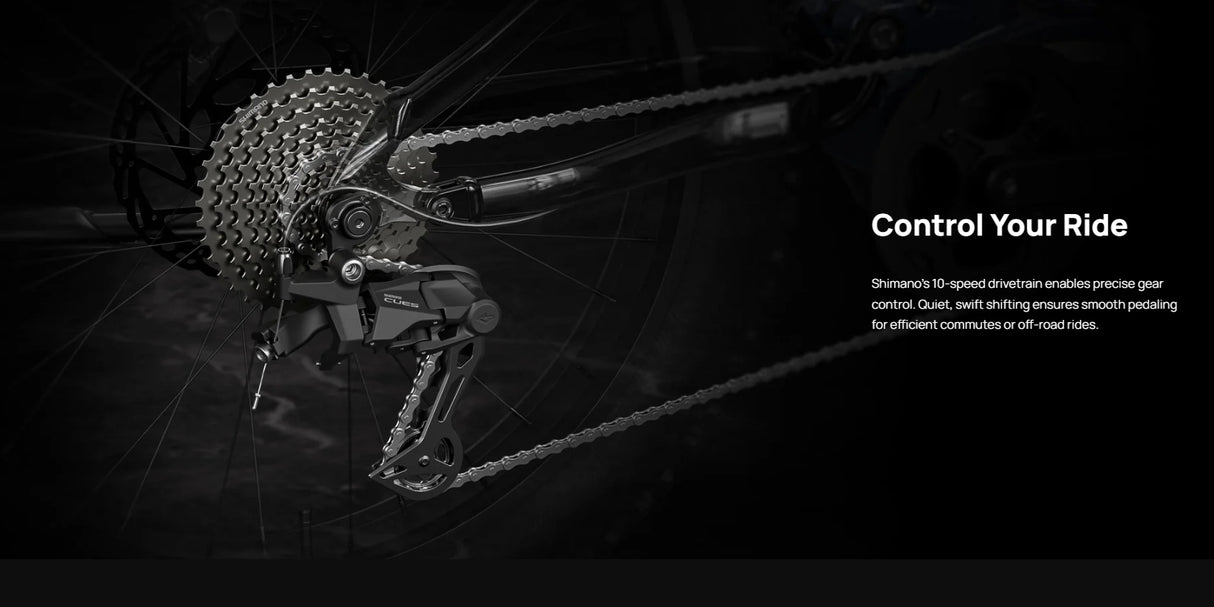

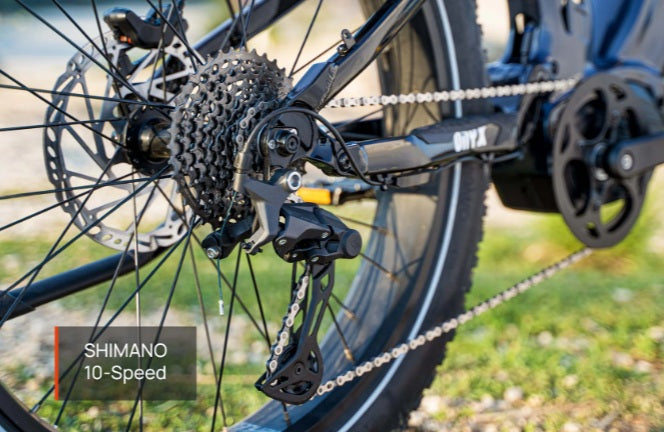

• Gearing - Shimano 10-Speed

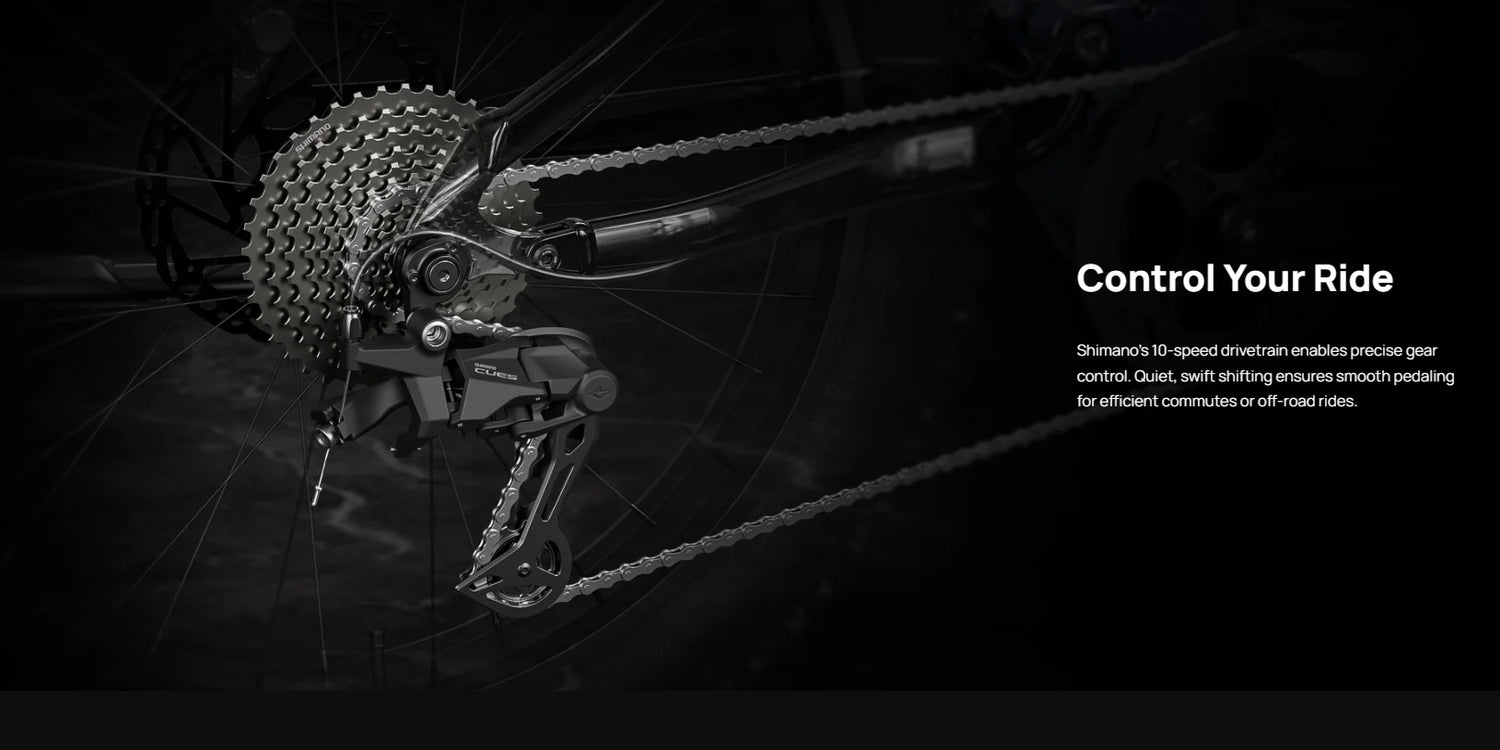

• Derailleur - 10 Speed Shimano Rear Derailleur
• Chain - KMC Stainless Chain
• Crank Set - Aluminum alloy, 170mm, 44T chainring

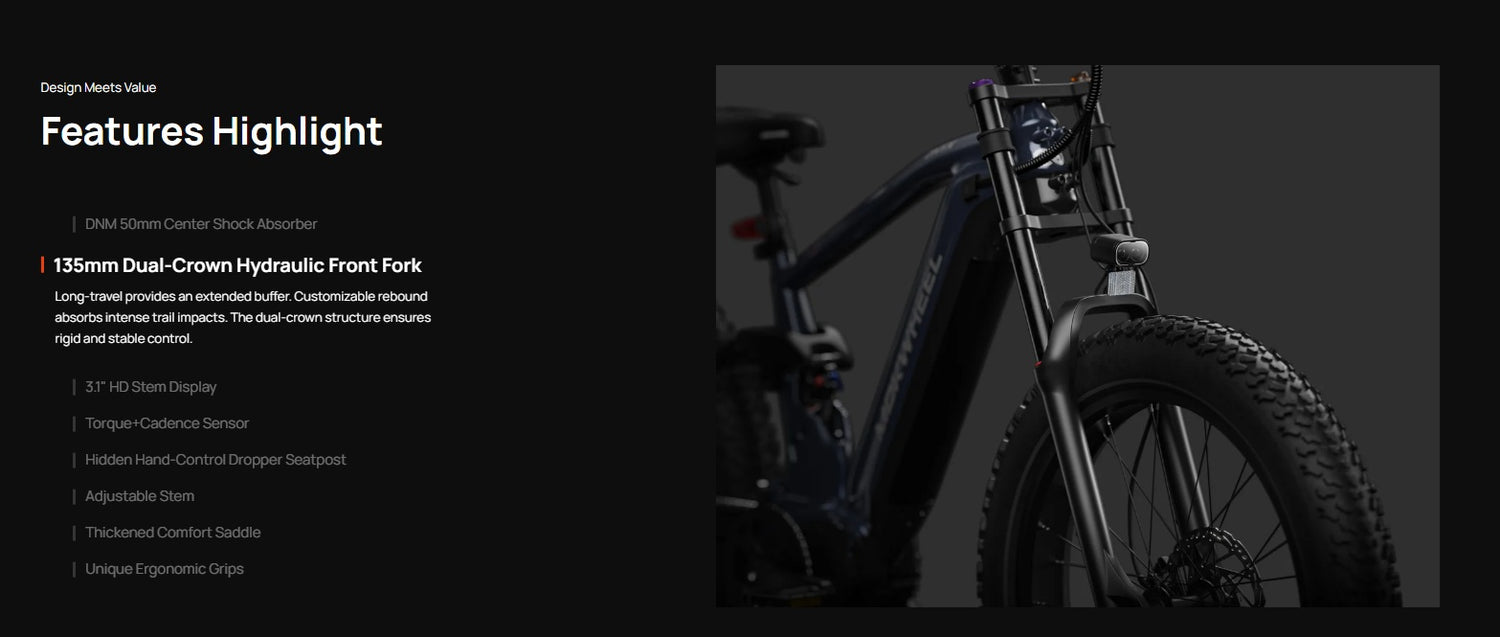

• Front Fork - 135mm Adjustable Suspension
• Frame - 6061 Aluminum Alloy with Internal Battery
• Throttle - Thumb Throttle

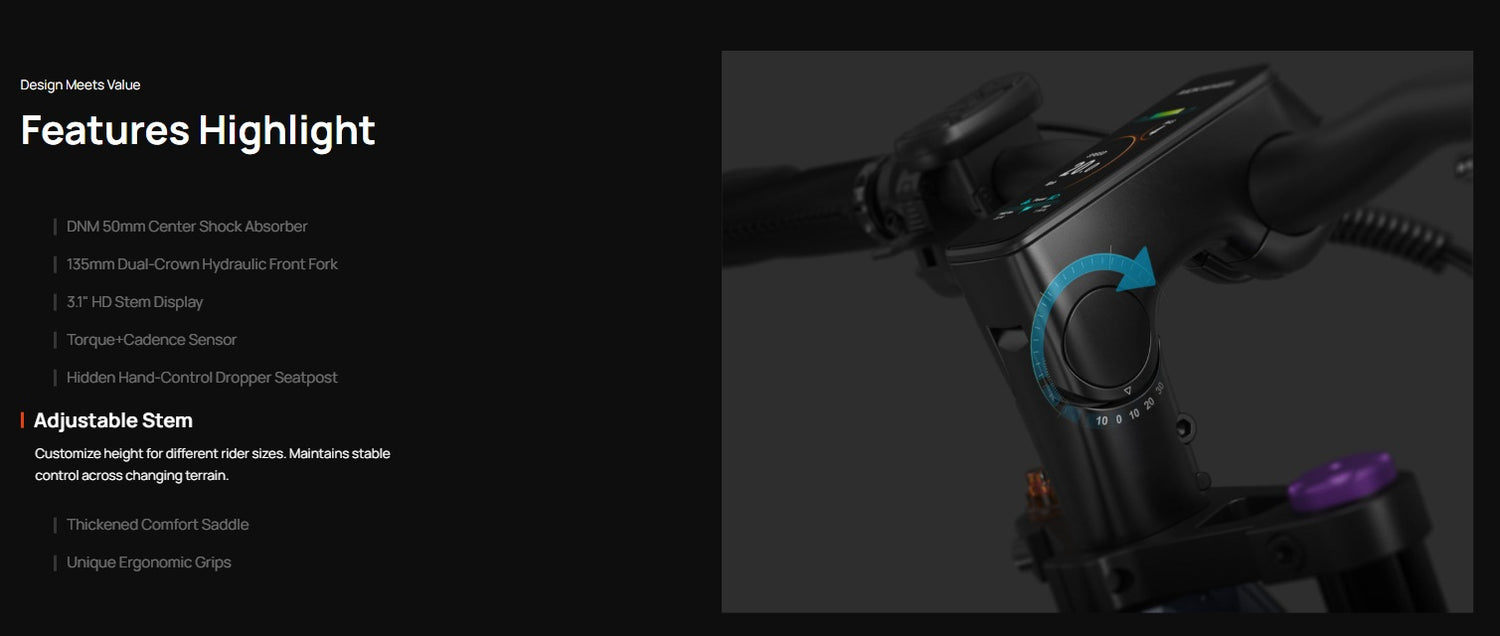

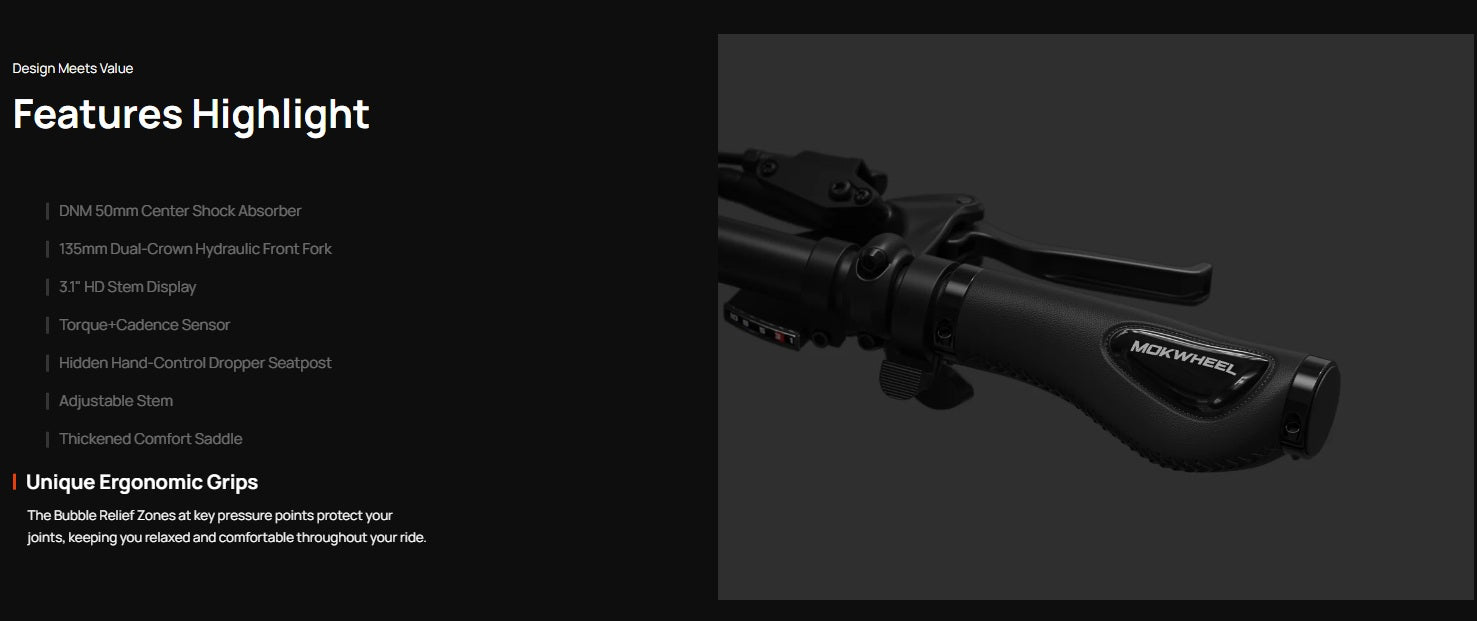

• Handlebar - Aluminum Alloy 31.8mm, 720mm
• Kickstand - Sturdy Aluminum Alloy
• Rims - Aluminum Alloy

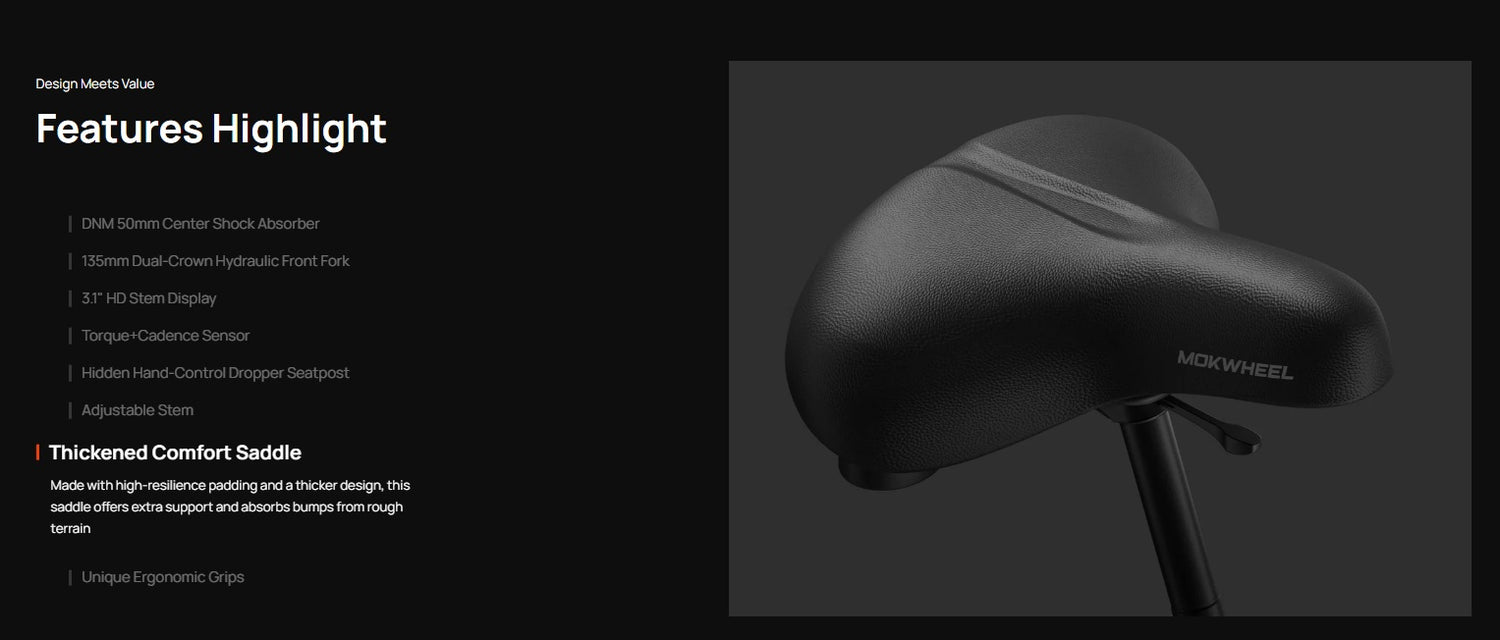

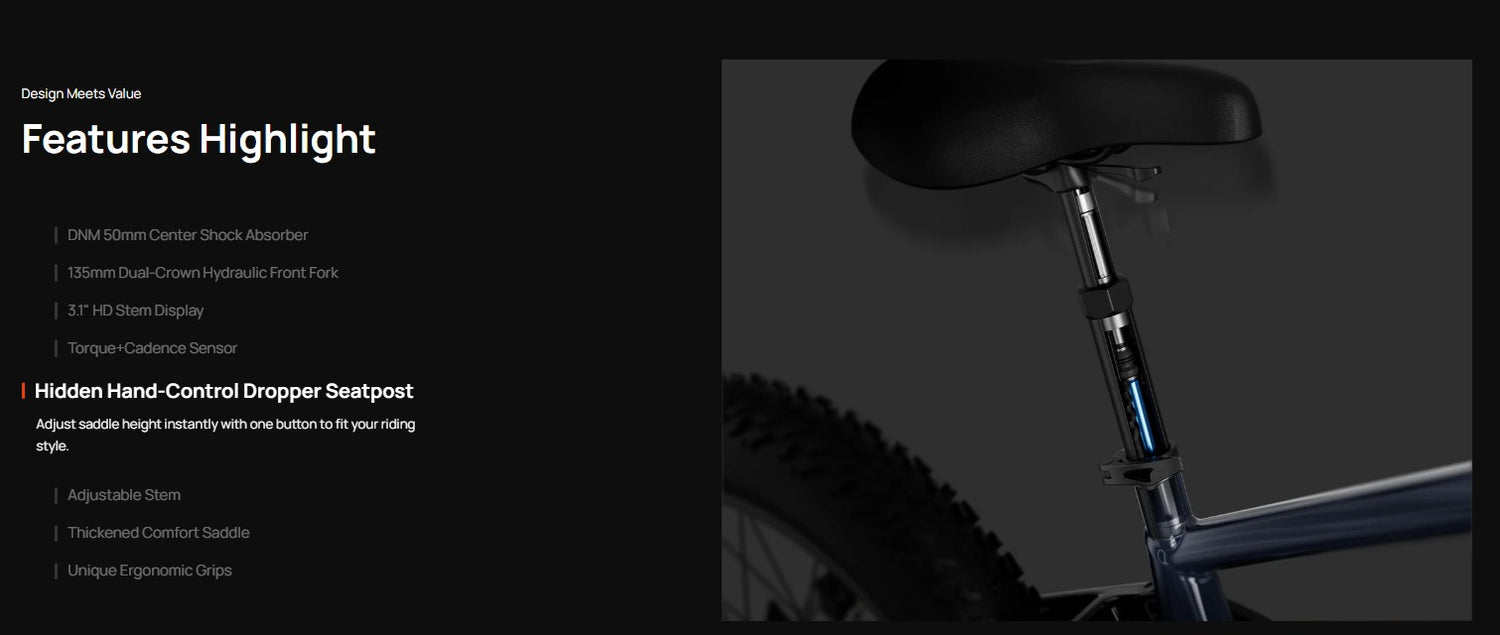

• Saddle - Hydraulic Two-Stage Adjustable Seat
• Spokes - Heavy-duty carbon steel, 12G × 248 mm (front) / 251 mm (rear)
• *Specifications subject to change without notice

For questions about your Mokwheel e-bike, email espressobicyclerepairs@gmail.com
